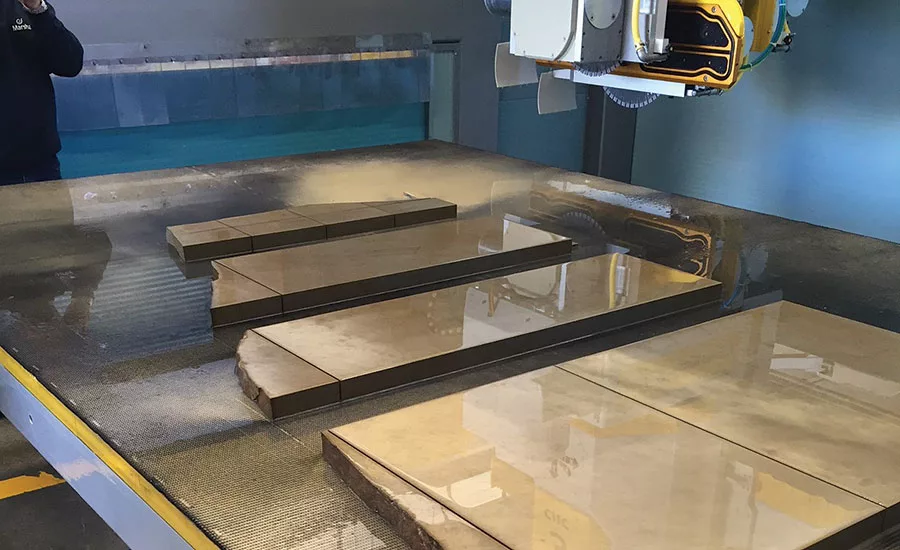

The GL Multispindle CNC Cutting Center from GMM S.p.A. is a high-production saw that has up to 13 axes. It is equipped with up to five blade motors driven by different variable speed power units to be used simultaneously or individually. With multi-blade cutting for dimensions from 140 to 2,000 mm, the central unit can perform angled cuts up to 90 degrees and all around 370 degrees. Additional features include:

• Independent tool wear control and compensation for each blade

• Accurate and fast cuts thanks to brushless motors and linear bearings

• Extremely precise results due to the rotating cutting unit — the material doesn’t need to be moved or re-aligned

• Automatic nesting of the cutting piece on the board with defect track, due to the use of an external camera

• Outstanding cutting performance thanks to the intuitive interface and the GMM-patented vacuum installed on the central unit

• Ability to load electronic cutting sheets

• Performs automatically parallel cuts, arcs and pieces shift by vacuum for allowing blade overruns

• Compact cutting line solution when equipped with automatic loading device and roller belt feeding system
